This is a simple prefab that can be used to display some text when the Text On/Off voltage is greater than 5 V.

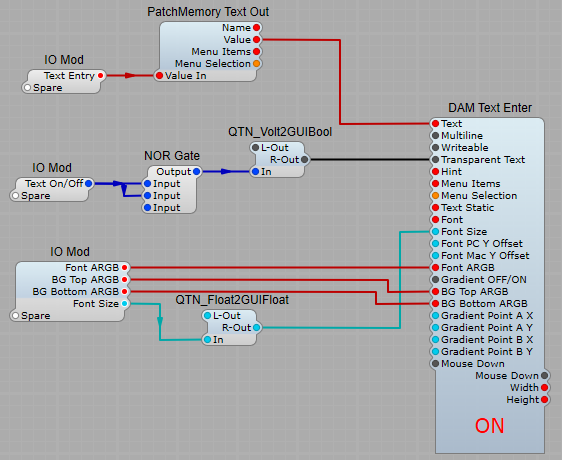

It works by switching the Transparent Text option on and off on the DAM Text Enter module.
Plugs.
Text Entry Plug: Used to specify the text to display.
The Font ARGB Plug: specify the colours for the option in ARGB format.
BG Top ARGB Plug: specify the colours for the option in ARGB format.
BG Bottom ARGB Plug: specify the colours for the option in ARGB format.
Text On/Off: When the input is greater than 0 volts the text is visible.
Font Size: Specifies the size of the text displayed in steps of 0.5 px. Note: don’t forget to set a font size!
Set the Writeable option of the DAM Text Enter module to “Off” to prevent users clicking on the display and changing it.

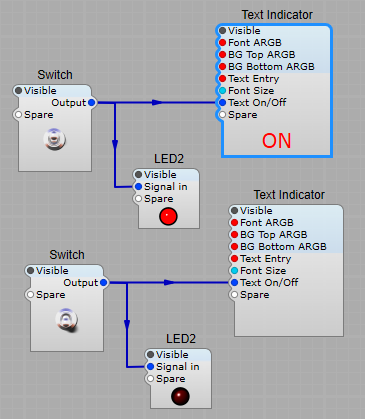

The prefab in operation.
